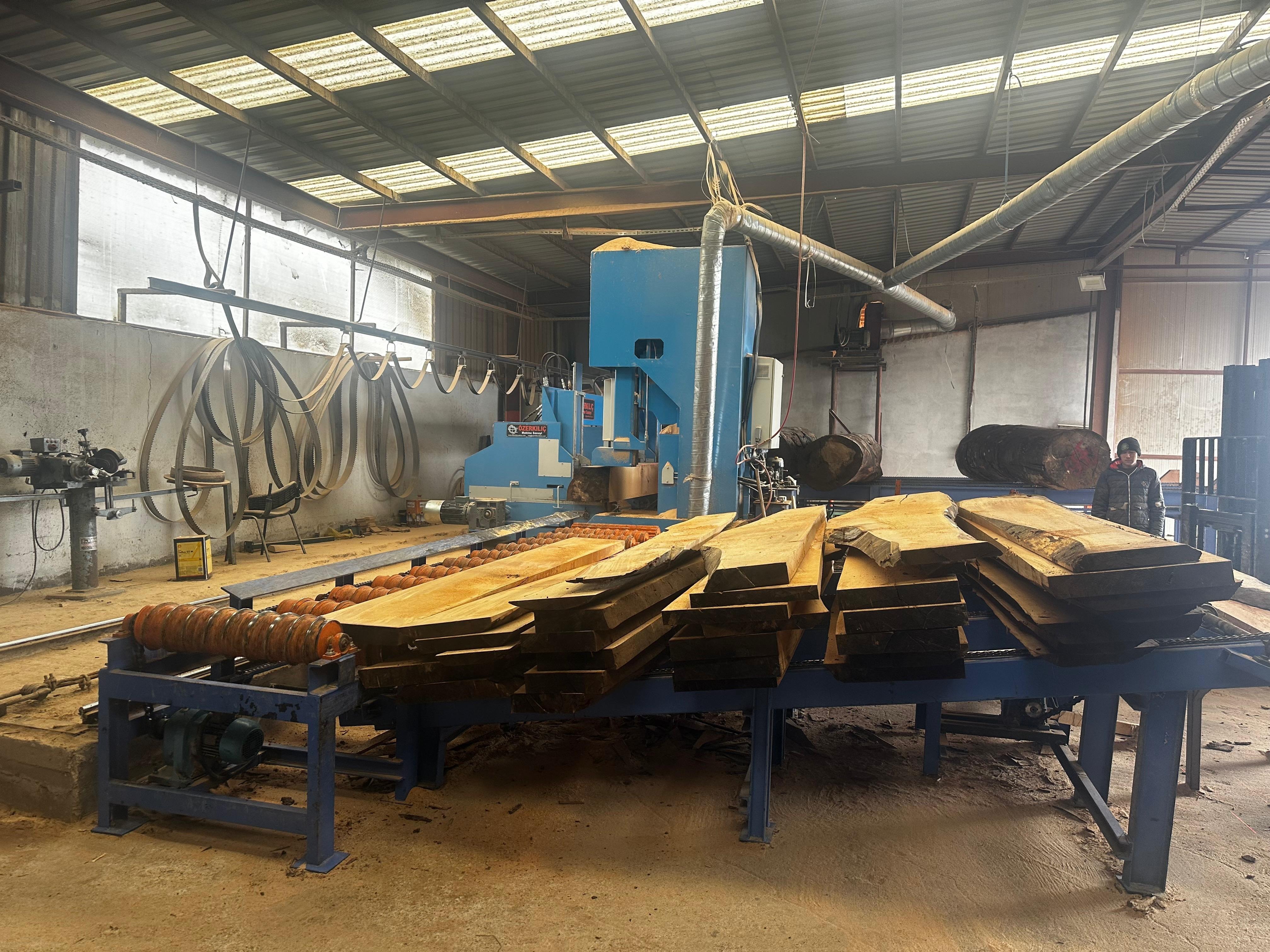

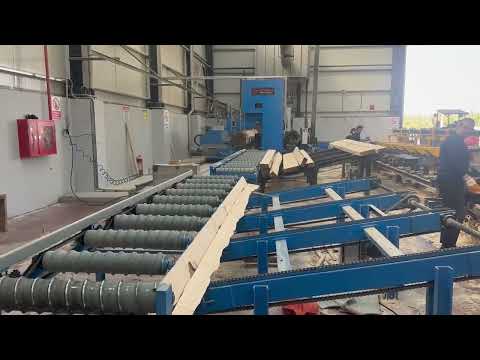

Longitudinal Board Conveyor with Fixed Fence

Home Products Conveyor Belt Machines Longitudinal Board Conveyor with Fixed Fence

ÖE-BKGS

Longitudinal Board Conveyor with Fixed Fence
Conveyor type Helical rollers
Board guide Fixed fence
Roller drive Geared motor
Transmission Chain and sprocket
Conveying speed 0–50 m/min
Main motor power 3 kW geared motor
Shipping Assembled
Roller movement Common chain drive
Roller tube Ø160 mm, 4 mm wall
Spiral flights 20×20 mm steel angle
Main chassis and legs UPN 120 channel
Conveyor width 920 mm
Roller length 720 mm
Sprockets 1" single strand
Weight 1000 kg
Dimensions (W × L × H) Optional
